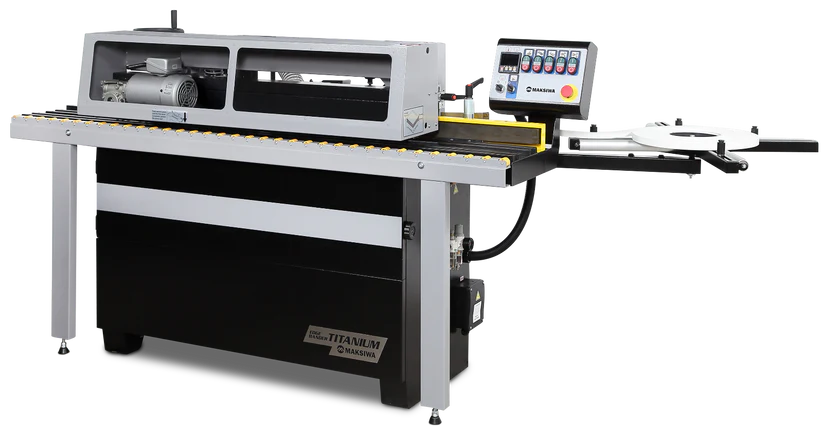

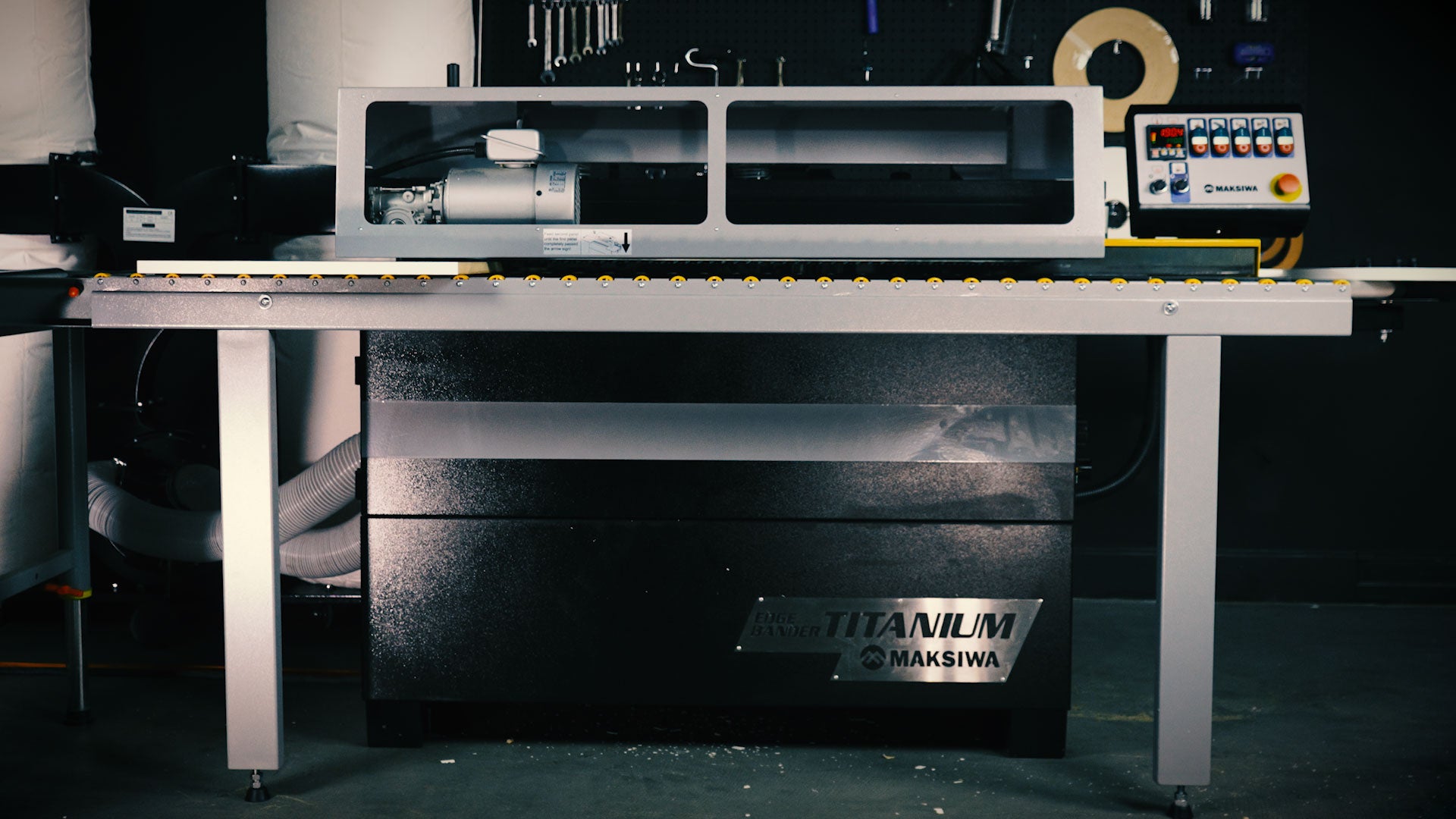

This machine is a master piece of engineering, packet with features that will make your job easier giving you a product finish like never before. Super steady and stable the CBC.T platform is a stainless steel mono-block base. All operating units are easy to be accessed through the upper protection hood.

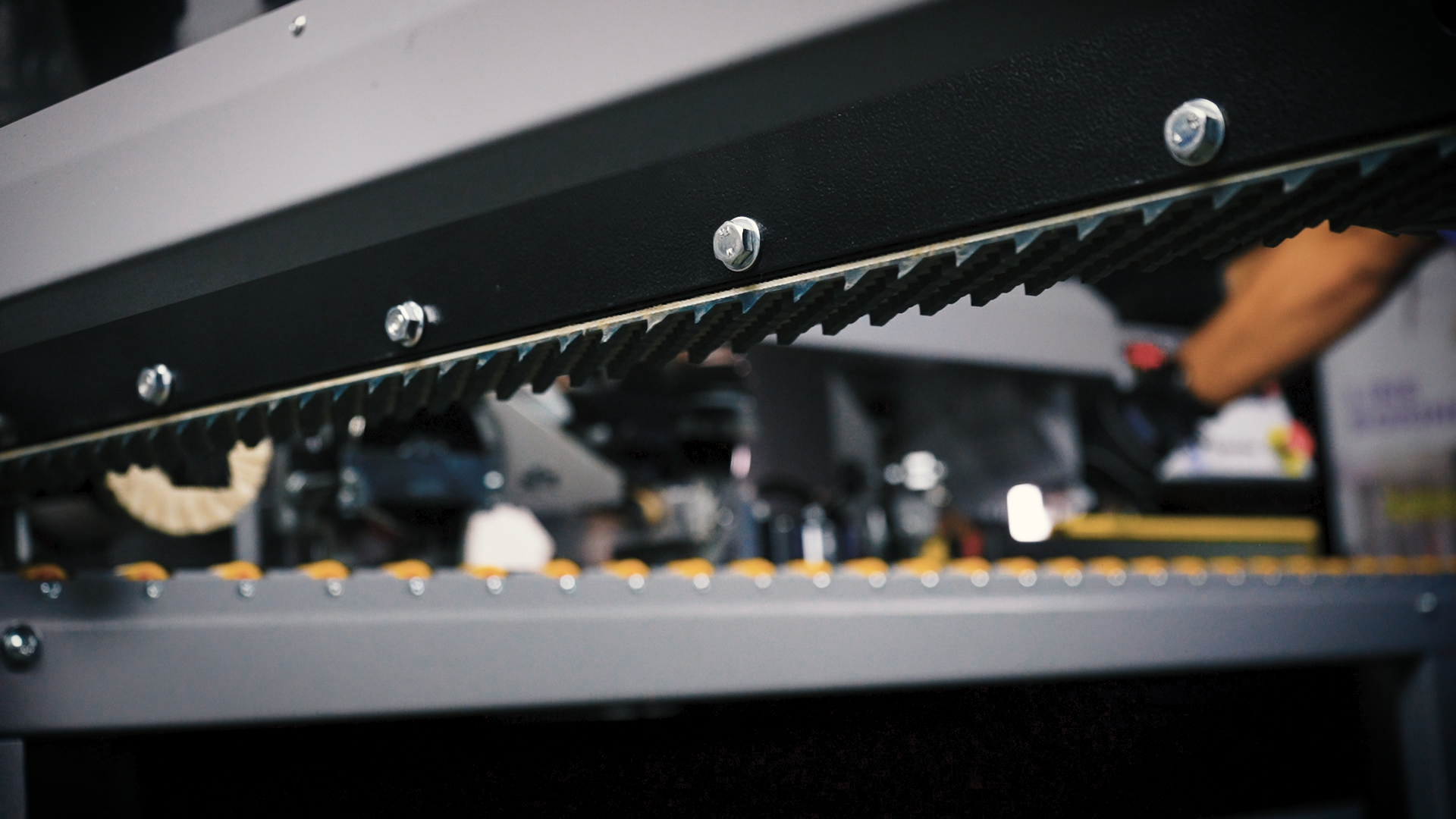

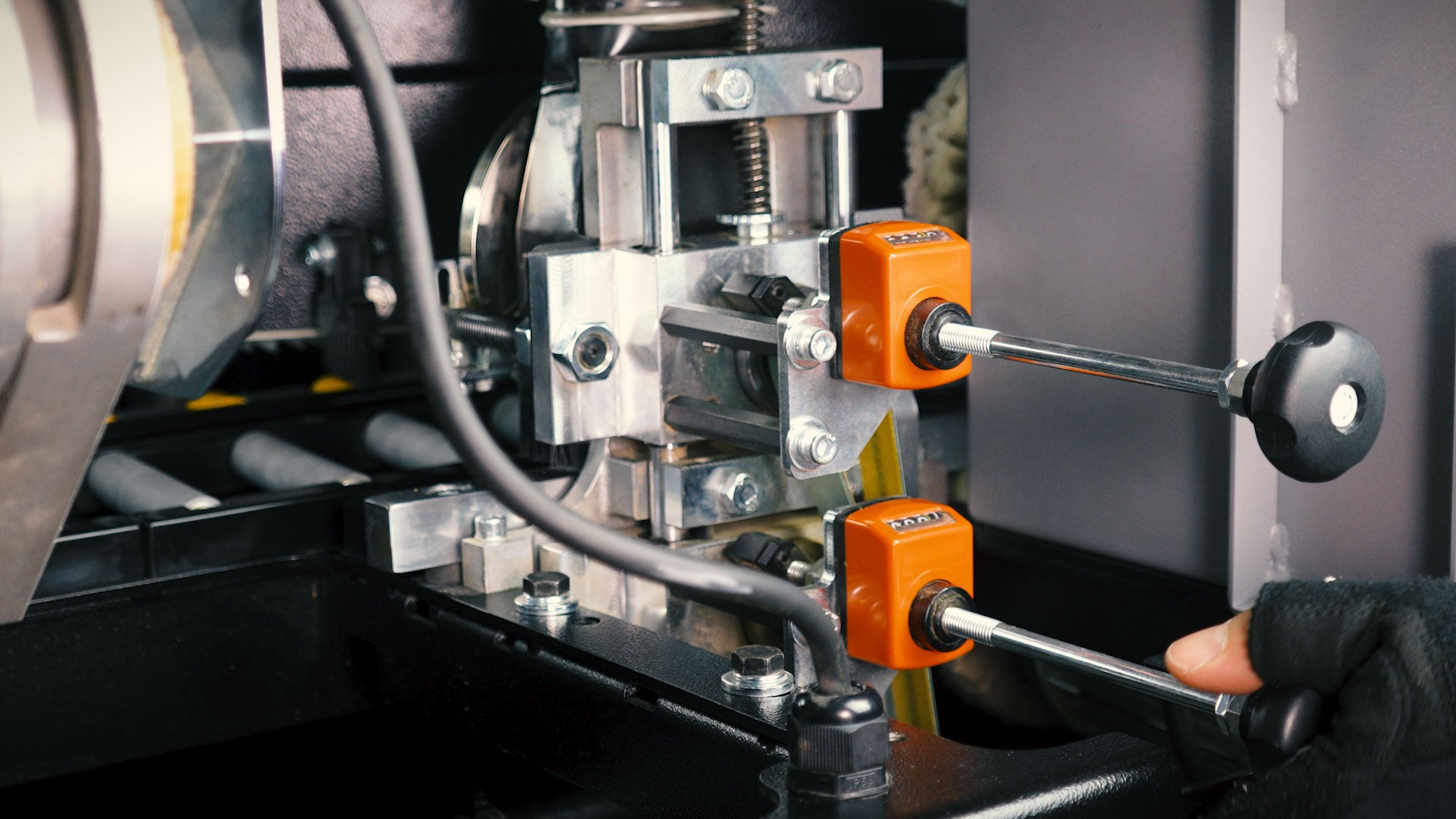

The friction-free worktable feed panels with high-precision and rollers moves the panels through effortlessly and smoothly. All stations are adjusted with a mechanical readout for reference and panel processing is fully automatic with all operating units synchronized.

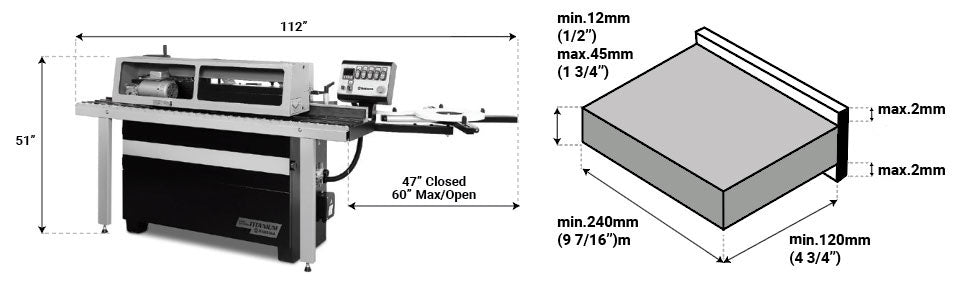

Working table dimensions: 2000 x 265 mm Extensible support: 310 mm Panel thickness: 12 / 45 mm Automatic panel feed speed: c.a5 mt/1’ End trimming unit rotation speed: 9,000 RPM Flush trimming unit rotation speed: 10,000 RPM (T.C.T) cutters Ø 75 mm Z4-12° R=2 mm Dust collection outlet: Ø 100 mm Glue pot elements: 1.135 W Total power installed: Ca. 3.3 KW Voltage: 380 – 440/50 – 60/3, 220 – 240/50 – 60/3 Approx. weight: (N.W./G.W.) 336 / 385KGS *** 740 / 849LBS Warranty: 2 Years
