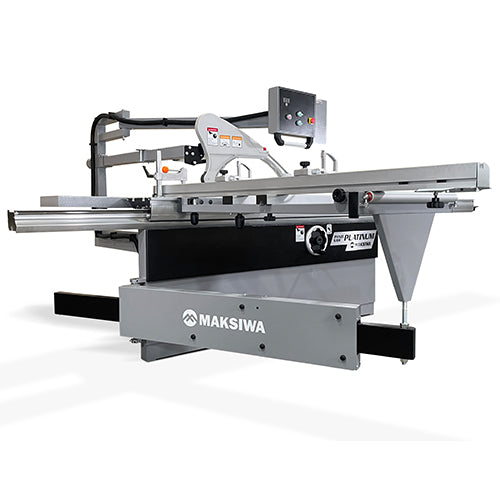

Maksiwa BMP.3200.IR PLATINUM Sliding Table Saw
Maksiwa BMP.3200.IR PLATINUM Sliding Table Saw
Couldn't load pickup availability

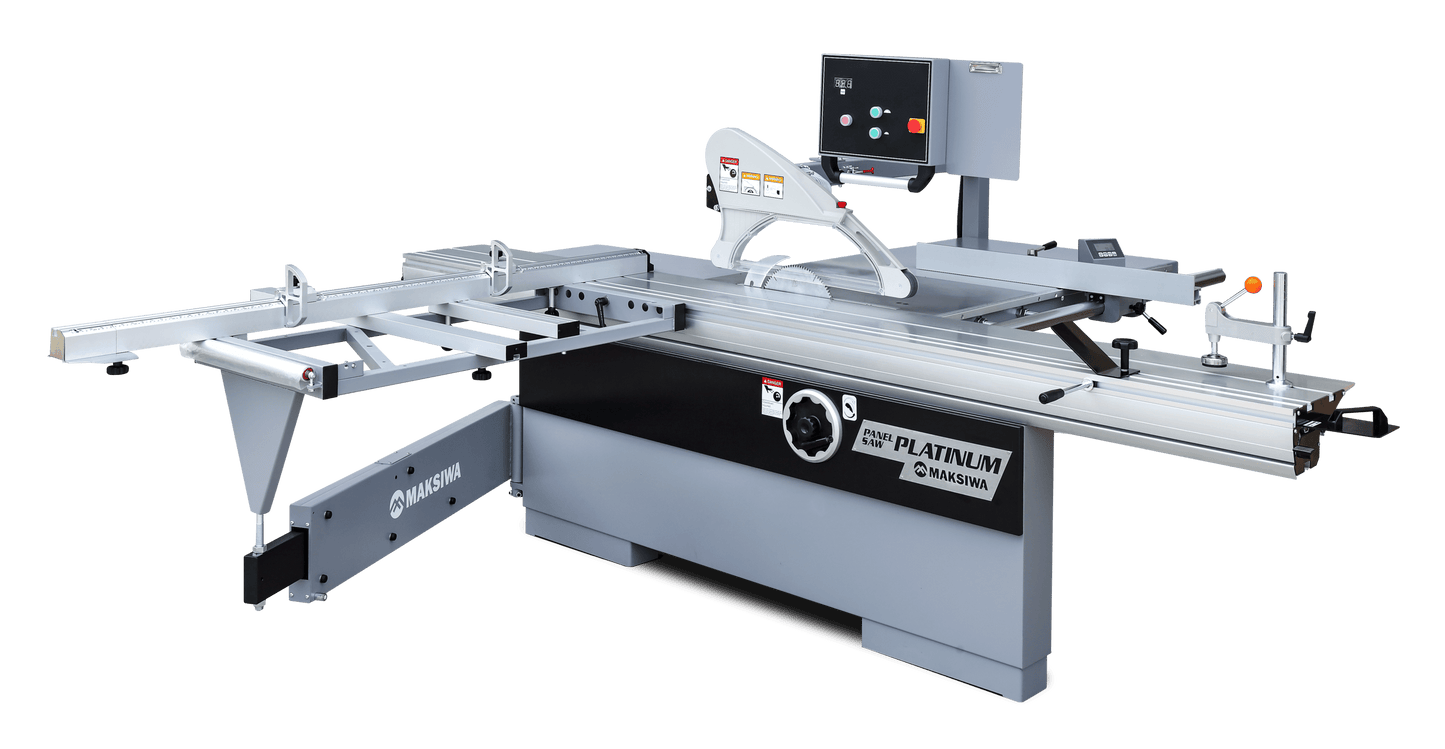

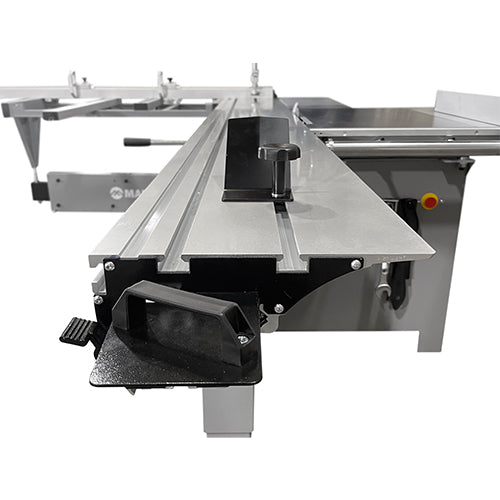

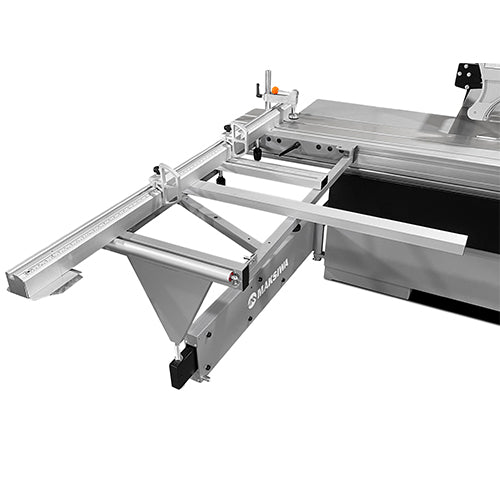

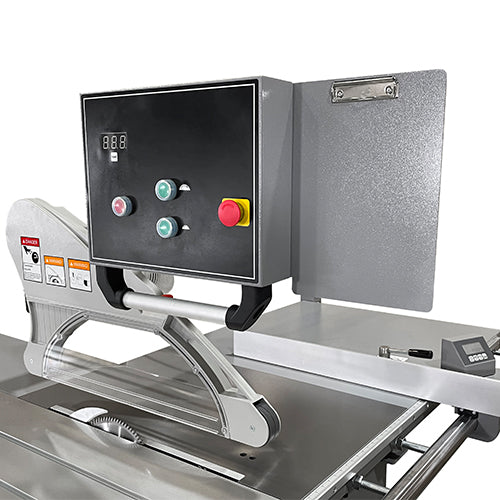

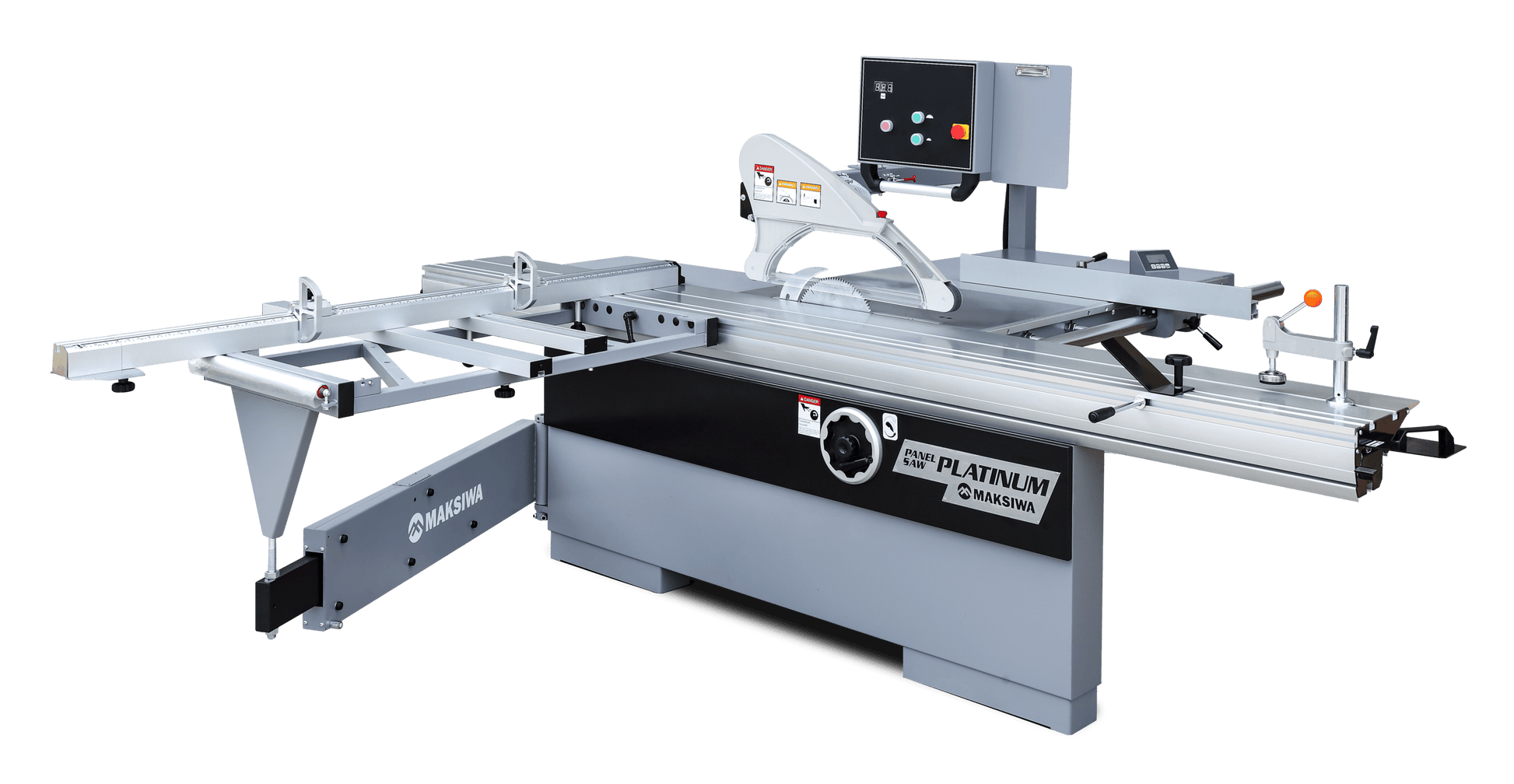

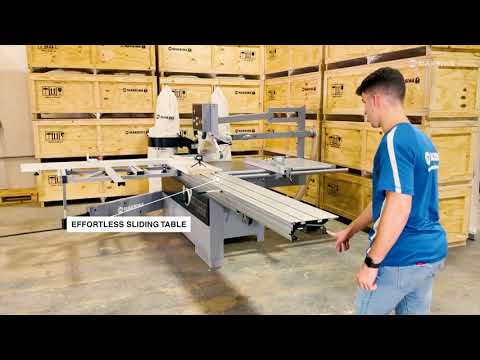

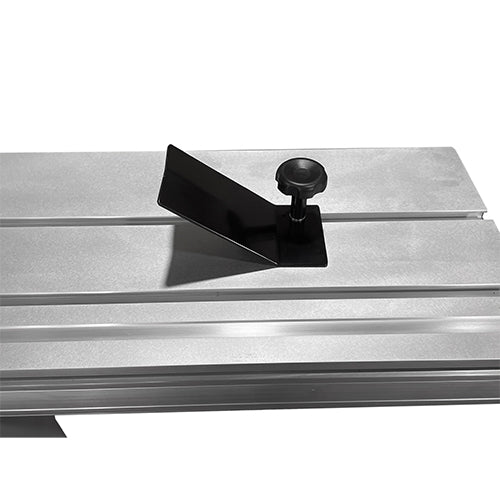

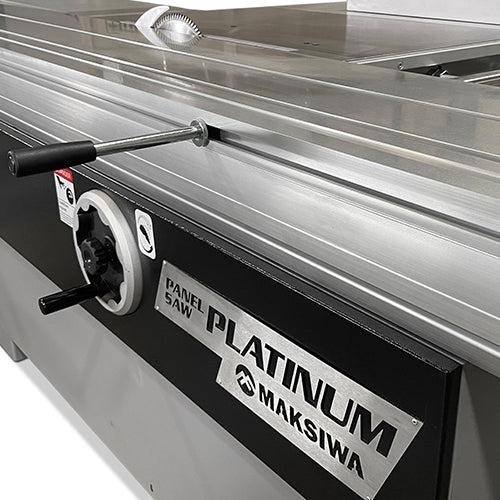

The BMP.3200.IR Platinum is the most powerful sliding panel saw from Maksiwa, equipped with a 7.5HP main motor and ¾ HP Scoring motor (3 phase). The 126” sliding table is constructed of anodized aluminum and runs on precision linear guide rails that gives you an ultra-smooth movement allowing you to move the table effortlessly. Designed with a European style 51″ rip fence, it has a digital readout with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. Our heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 140″), 45° miter and is ergonomically designed to make it easier to read the tape. The control panel is conveniently located on an eye-level position with easy access to the main operation buttons. It comes standard with two overhead guards 90° and 45° featuring a quick-change and swing-away function, easily switch from one to the other in a matter of seconds and move the guard out of the way easily if necessary. It also includes a push handle, hold-down clamp and wedge clamp.
General
• Sliding table dimension: 132”x 14 1/8”
• Sliding table max travel length: 286”

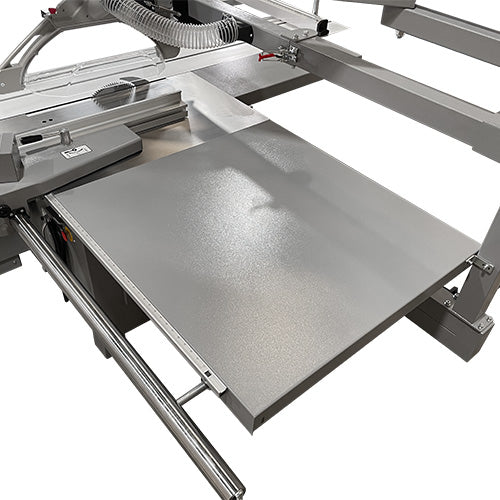

• Main table with supporting table width: 59”
• Crosscut Fence stoppers: 2
• Crosscut Fence: Tape
• Crosscut Fence Max. Collapsed: 78"
• Crosscut Fence Max. Extended: 140"

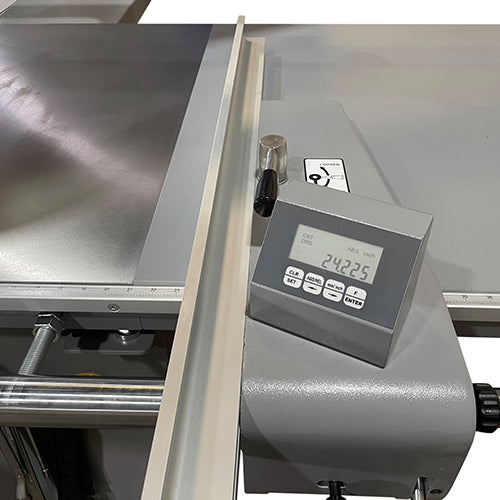

• Rip Fence with digital readout
• Rip Fence micro adjustment
• Rip Fence bar: Solid Steel Micro Polished: 2"

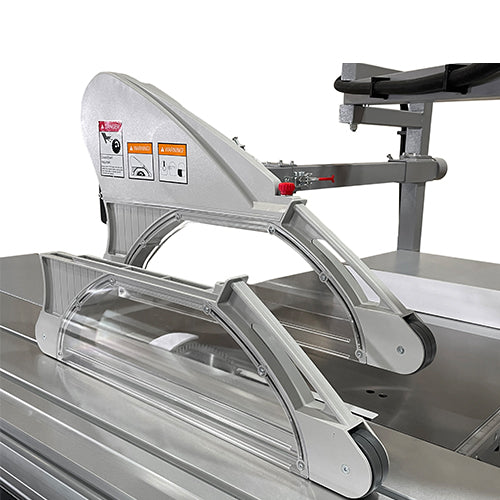

• 2 Blade Covers 90° & 45°
• Lockable main power switch

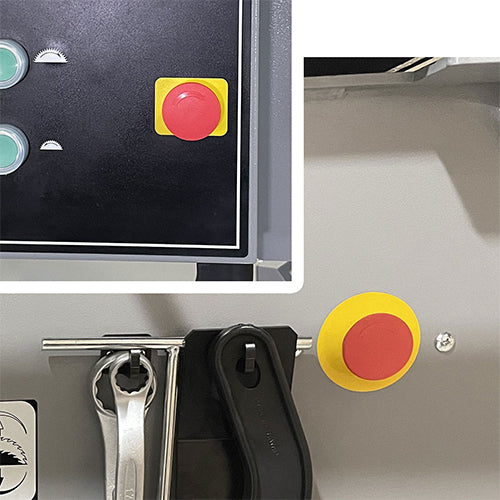

• 2 Emergency buttons
• Hold Down Clamp: Included
• Max tilt: 45°
• Max depth cut: 3"
• Max cutting length: 120”
• Max cutting height with blade at 90°: 3 1/2" / 90mm
• Max cutting height with blade at 45°: 2 3/8" / 62mm

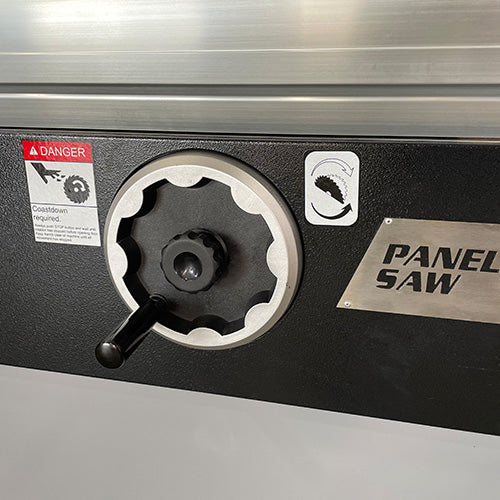

• Digital Tilt Display
• Weight N/G: 1519 LBS / 1752 LBS

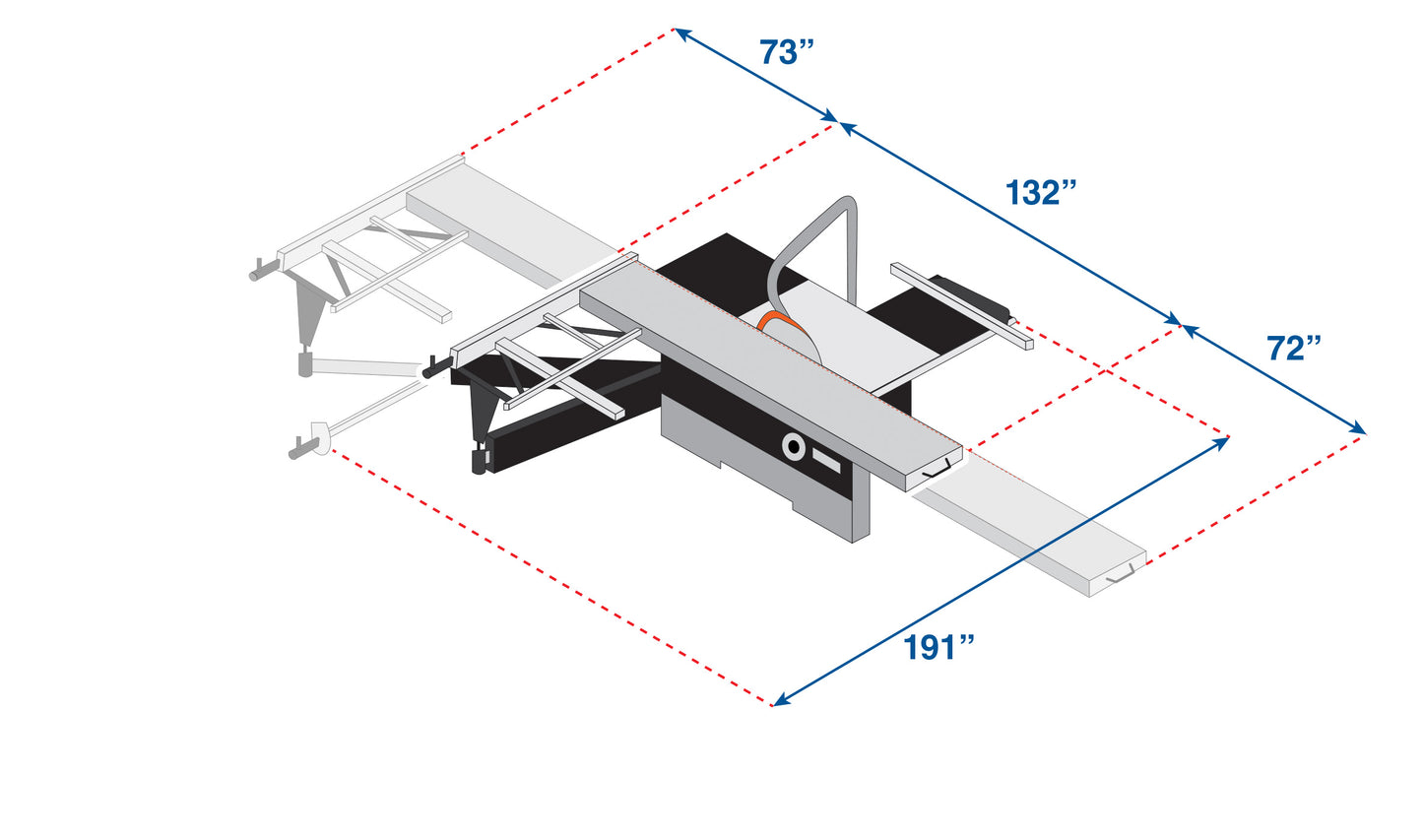

• Machine dimensions (collapsed): L 132” X W 135” X H 65’’
• Machine dimensions (extended): L 192” X W 280” X H 65’’
• Main blade diameter: 12” / 305mm
• Main blade arbor size: 1” 3/16" / 30mm
• Scoring blade diameter: 4 ¾’’ / 120mm
• Scoring blade arbor size: 3/4” / 20mm
• Scoring blade adjustment: T-Handle through cast top
Blade
• Main blade diameter: 12” / 305mm
• Main blade arbor size: 1” 3/16" / 30mm
• Scoring blade diameter: 4 ¾’’ / 120mm
• Scoring blade arbor size: 3/4” / 20mm
• Scoring blade adjustment: T-Handle through cast top
Dust Collection
• Port 1 diameter: 4"
• Port 2 diameter: 4"
• Minimum CFM needed: 1000 CFM Electrical
• 3 Phase Model :
• 7.5 HP - 24 Amps 60 HZ 3.7 KW
• Blade Speed 4000 RPM
• Scoring motor:
• 3/4 HP - 6 Amps 0.55 KW
• Blade Speed: 8000 RPM"
